Machine workholding supplies from India

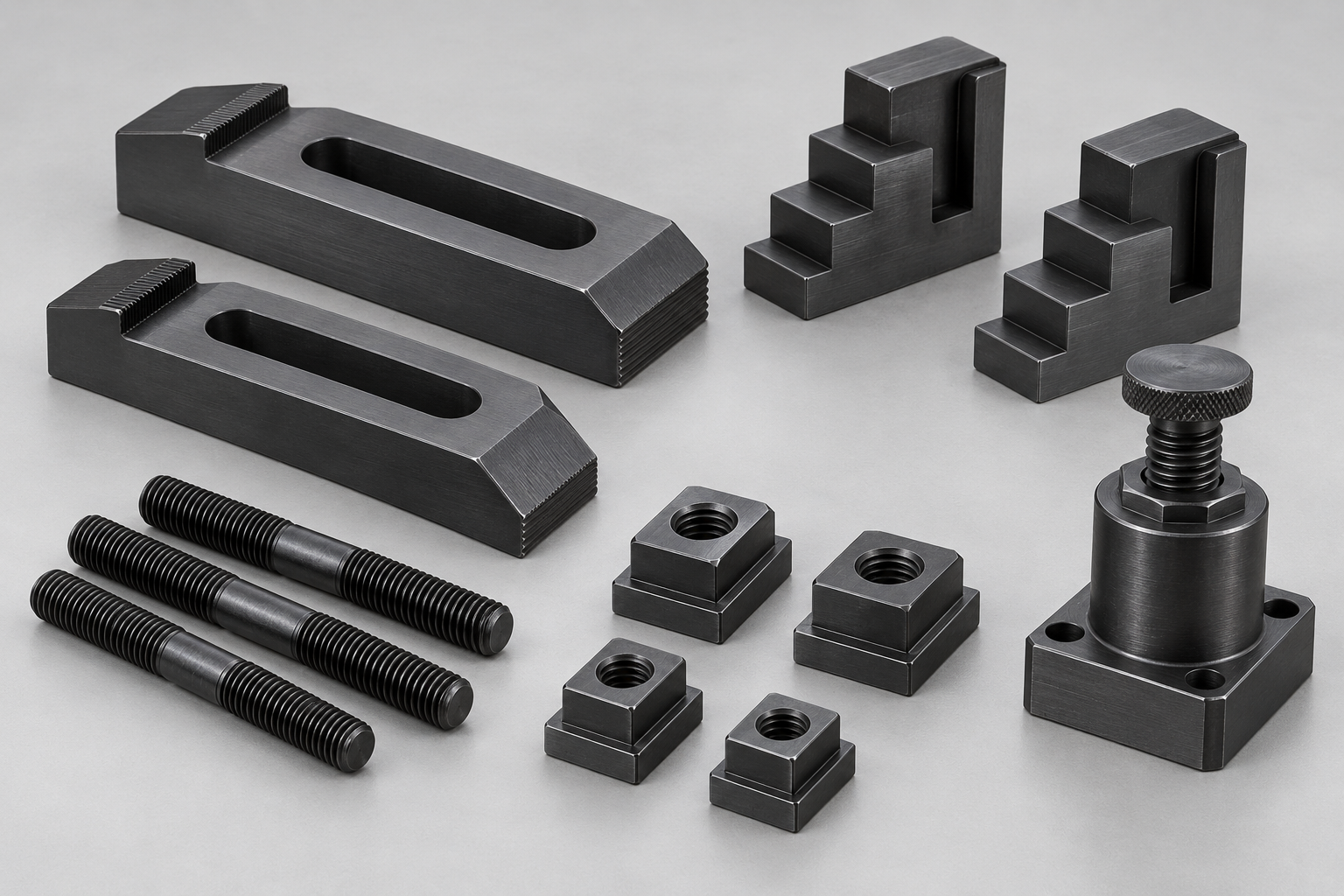

India Supply Solutions supplies clamping fasteners, top and side clamps, support systems, quick-acting fixture elements, CNC accessories and mould-clamping components against an agreed model or drawing. Start with the machine interface and workpiece requirement, then confirm the source, inspection and commercial terms.
Machine Clamping Fasteners Supplier India
Send the table T-slot drawing and stud thread, including pitch. A thread designation alone does not establish T-slot fit. For a comparable quotation, identify slot neck and base widths, available depth, engagement length, nut seating arrangement and required material or surface treatment. Blank, stainless and special-dimension T-nuts need their own drawing and quotation. Specify any inspection records and the exact standard edition required.
Strap & Hold-Down Clamps Supplier India
Compare strap, stepped, heel, U and hold-down designs using the complete setup: stud position, available clamping height, rear support and tool clearance. Quote the catalogue model or a dimensioned drawing with clamp length, width, thickness and slot dimensions. Do not select a larger thread as a substitute for an engineering check of the complete assembly.
Step Blocks & Screw Jacks Supplier India
Step blocks, height blocks and screw jacks serve different setup requirements. State minimum and maximum support height, base footprint, contact-pad form and workpiece geometry. Fine adjustment and coarse setup are separate requirements. Stacking or extending supports must follow an approved setup; a catalogue family description does not establish a load rating for an arbitrary assembly.
Side Clamps for Machining Supplier India
For machine, swing, taper and low-profile clamps, specify workpiece thickness, available side clearance, table or fixture interface and anticipated machining operation. Discuss lifting restraint and permissible contact marks before selecting a jaw arrangement. Thin plates require a workholding review for deformation; dimensional examples should not be treated as guaranteed machining accuracy.
Quick Acting Clamps & Plungers Supplier India
Compare adjustable-height, up-thrust and low-height mechanisms against the fixture's loading sequence and available lever movement. Define contact location, opening clearance and locked position. Ball and rounded-pin plungers require separate specifications for thread, projection and spring force. A locating plunger should not be treated as a load-bearing workholding clamp without an approved design.
CNC Soft Jaws & Turret Sleeves Supplier India
For soft jaws, provide chuck make and model, jaw interface, serration details where applicable, fastener layout and required jaw dimensions. For turret sleeves, distinguish straight bore from Morse-taper arrangements and open-slot from closed-slot designs. Include the turret interface drawing and inspection dimensions. Compatibility must be confirmed for the exact machine rather than inferred from a generic CNC designation.
Injection Mould Clamping Components Supplier India
Provide the platen thread specification and usable depth, mould clamping height, clamp seating detail and available installation space. Mould strap clamps, flanged studs, support bolts and thick washers should be selected together against the machine and tooling requirements. Include an approved installation or torque specification where available; do not derive tightening values from a product photograph.
Build the complete setup
Match the clamp, fixing, support, table slot and workpiece contact. A dimension or thread size alone does not establish working capacity. Supply an approved fixture drawing where available and identify any replacement-part requirements.
Bulk and export quotation
Send model quantities, material and finish, destination and required delivery date. ISS confirms availability, MOQ, samples, inspection, packaging and agreed logistics before commitment. Catalogue references support selection; they do not promise stock or certify the installation.
